More Depth. More Power. More Productivity.

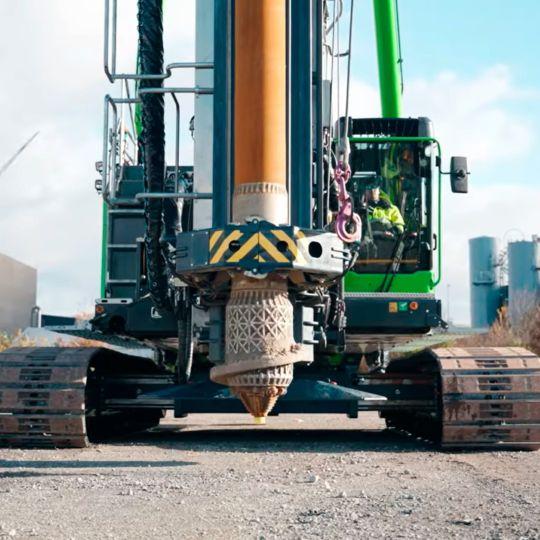

Step into a new era of piling innovation with the new Junttan Evolution series, where cutting-edge technology meets unparalleled performance. Taking the lead in this revolutionary line-up is the DR5 drilling rig, Junttan’s latest innovation in drilling rig technology designed for both FDP (Full Displacement Piling) and CFA (Continuous Flight Auger) applications.

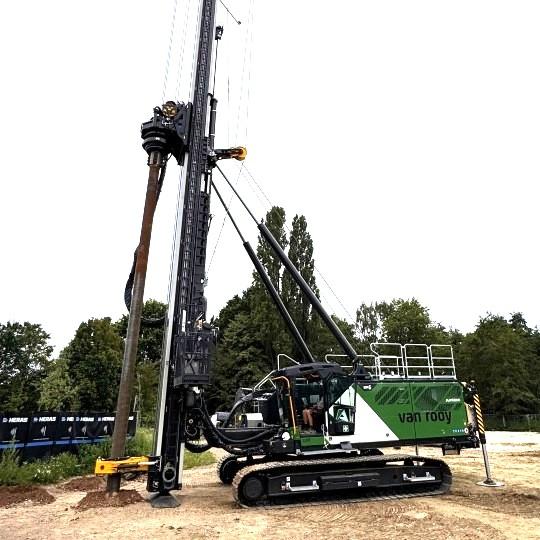

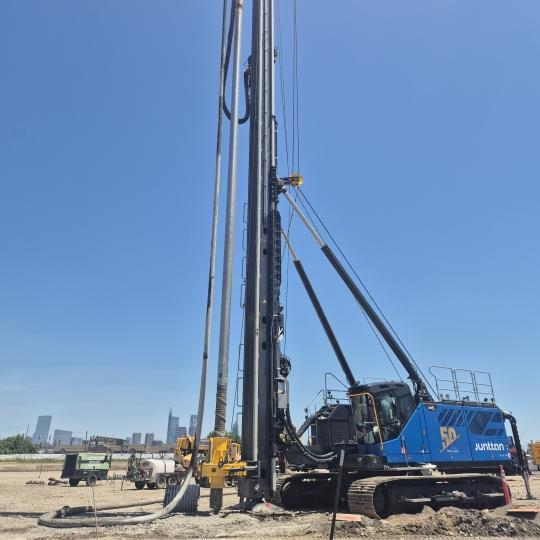

With class-leading capacity and single-pass drilling depths of up to 29 meters, the DR5 delivers exceptional productivity. Its seamless transportation and fast, effortless setup minimize downtime between jobsites, maximizing time for productive drilling.
Designed around the operator, the DR5 features a modern Evolution cabin, intuitive controls and advanced automation, including drilling, concreting and stability assistants. Together with real-time operational data and state-of-the-art safety features, these innovations make drilling safer, easier and more efficient than ever.
Average working weight:69 000-74 000 kg (152 000-163 000 lb)
Max torque:300 kNm
Max drilling depth:21-29 m (69-95 ft)
- Engine type: Volvo TAD1385VE
- Engine power (US Tier 4F/EU Stage V): 405 kW (543 hp)
- Hydraulic system, max flow: 2 x 380 + 290 l/min(2 x 100 + 77 gal)
- Hydraulic system, max pressure: 380 bar (5 511 psi)
- Main winch capacity: 20 000 kg (44 092 lb)
- Secondary winch capacity: 13 000 kg (28 660 lb)
- Third winch capacity: 10 000 kg (22 046 lb)
- Auxiliary winch capacity: 5 000 kg (11 023 lb)
- Max extraction force: 800 kN (179 847 lbf)
- Max pull down force: 260 kN (58 450 lbf)
- Undercarriage length: 5 660 mm (223 in)
- Undercarriage width w/ 900 mm track shoes: 3 380-4 880 mm (133-192 in)
MAIN FEATURES:
- Class-leading single-pass drilling performance
- Transported as a complete, work-ready unit
- Swift and effortless rig setup via remote control
- Top-tier cabin and operator interface for unparalleled user experience
| FDP application | Standard | Long | Extended |
|---|---|---|---|
| MAX. DRILLING DEPTH | 21 m (69 ft) | 25 m (82 ft) | 29 m (95 ft) |
| MAX. DRILLING DIAMETER | 620 mm (24 in) | 620 mm (24 in) | 620 mm (24 in) |
| MAX. EXTRACTION FORCE | 800 kN (179 847 lbf) | 800 kN (179 847 lbf) | 800 kN (179 847 lbf) |
| MAX. PULL DOWN FORCE | 260 kN (58 450 lbf) | 260 kN (58 450 lbf) | 260 kN (58 450 lbf) |
| MAST EXTENSION | – | 4 m (13 ft) | 4 + 4 m (13 + 13 ft) |
| APPROX. OPERATING WEIGHT | 69 000 kg (152 000 lbs) | 71 000 kg (157 000 lbs) | 74 000 kg (163 000 lbs) |
| CFA application | Standard | Long | Extended |
| MAX. DRILLING DEPTH (*WITH AUGER CLEANER) | 21 m / 20 m* (69 / 66* ft) | 25 m / 24 m* (82 / 79* ft) | 29 m / 28 m* (95 / 92 ft) |
| MAX. DRILLING DIAMETER | 1 200 mm (47 in) | 1 200 mm (47 in) | 1 200 mm (47 in) |
| MAX. EXTRACTION FORCE | 800 kN (179 847 lbf) | 800 kN (179 847 lbf) | 800 kN (179 847 lbf) |
| MAX. PULL DOWN FORCE | 260 kN (58 450 lbf) | 260 kN (58 450 lbf) | 260 kN (58 450 lbf) |
| MAST EXTENSION | – | 4 m (13 ft) | 4 + 4 m (13 + 13 ft) |
| APPROX. OPERATING WEIGHT | 69 000 kg (152 000 lbs) | 71 000 kg (157 000 lbs) | 74 000 kg (163 000 lbs) |
