Please see below our used machines currently available
Products are categorised to X-series and Classic-series
Junttan PMx20 with HHK4/5A
Second-hand Junttan pile driving rig PMx20 with Junttan accelerated hammer HHK4/5A
Well serviced compact size used pile driving rig with recommended hammer size of 4-5ton. Suitable for large timber, steel and concrete piles. Self-erecting leader and easy transport mobility.
- PILE DRIVING RIG: PMx20 #1704
- Year of manufacture: 2015
- Working hours: About 6 300
- Availability / Condition: Available / Repaired & Serviced
- Location: Nieuwegein, Netherlands
- Weight (working/transport): 58,7/ 43,3ton (without hammer & counter weight)
- Engine type / power: Cummins QSB6,7 Tier4i / 179kW (240Hp)
- Leader length/Telescopic movement/Max.pile (max.hammer): 18,0/4,0/15,0m
- Leader / Pile capacity: 13,0ton / 4,0ton with hammer
- Hammer winch: 11ton / D25mm steel rope
- Pile winch: 8ton / D20mm steel rope
- Horizontal boom movement: 1,5m
- Counter weight: 6,4ton
- Track shoes: 900mm
- Transport dimensions: 20,2 x 3,2 x 3,7m (hammer on the mast)
- Rig features & accessories: Webasto, Rear jacks
- HYDRAULIC HAMMER: HHK4/5AL
- Year of manufacture: 2015
- Working hours: About 6,300
- Weight total / block: 9,0ton / 5ton
- Drop height: 1,2m
- Max. Energy: 59kNm
- Blow rate: 30 - 100 / min.
- Dimensions: 6,2 x 0,9 x 1,0m
- Hammer features & accessories: Drive cap housing D800mm

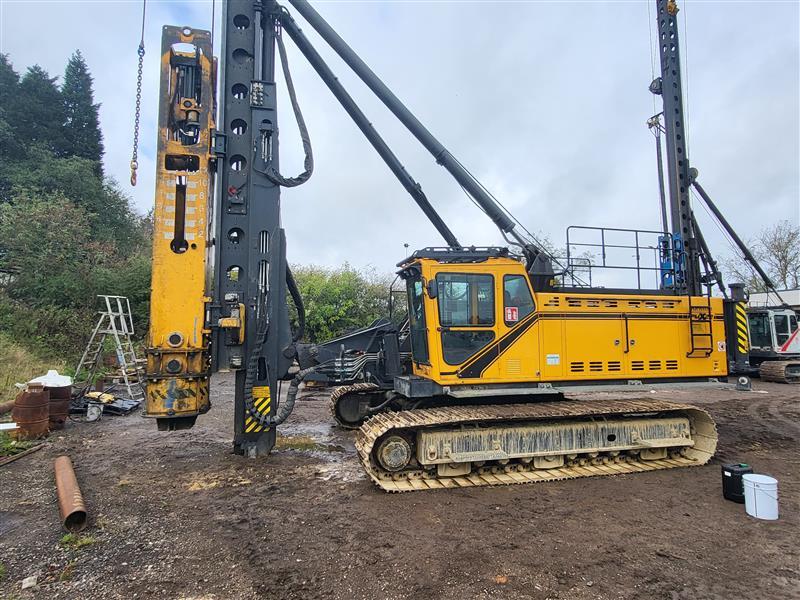

Junttan PMx22 with SHK4/5/6
Second-hand Junttan pile driving rig PMx22 with Junttan accelerated hammer SHK4/5/6
Well-serviced mid-sized pile driving rig with recommended 4-6 tons hammer size. Suitable for large timber, steel and concrete piles. Self-erecting leader and easy transport mobility.
- PILE DRIVING RIG: PMx22 #1767
- Year of manufacture: 2017
- Working hours: 5 700
- Availability: Delivery time 4 months
- Location: Kuopio, Finland
- Weight (working/transport): 68 / 50 ton (without hammer & counter weight)
- Engine type / power: Cummins QSB6,7 Tier4F / 224kW (300Hp)
- Leader length/Telescopic movement/Max.pile (max.hammer): 21,0/4,0/18,0m
- Leader / Pile capacity: 15,5ton / 4,0ton with 6t hammer
- Hammer winch: 11ton / D25mm steel rope
- Pile winch: 10ton / D20mm steel rope
- Horizontal boom movement: 1,5m
- Counter weight: 6,4ton
- Track shoes: 900mm
- Transport dimensions: 19,0 x 3,2 x 3,7m (hammer on the mast)
- Rig features & accessories: Webasto, Rear jacks, Hammer Pull-down winch in the mast
- HYDRAULIC HAMMER: SHK4/5/6
- Year of manufacture: 2017
- Working hours: 5 700
- Weight total / block: 10,8ton / 6ton
- Drop height: 1,2m
- Max. Energy: 73kNm
- Blow rate: 40 - 120 / min.
- Dimensions: 6,8 x 0,9 x 1,0m
- Hammer features & accessories: Drive cap housing D800mm
Junttan PMx27 with SHK5/7/9
Second-hand Junttan pile driving rig PMx27 with Junttan accelerated hammer SHK5/7/9
Well-serviced large-sized pile driving rig with recommended 7-9 tons hammer size. Suitable for steel and concrete piles. Self-erecting leader and easy transport mobility.
- PILE DRIVING RIG: PMx27 #1679
- Year of manufacture/Overhauled: 2015/2023
- Working hours: 7 000
- Availability: Available
- Location: Nieuwegein, Netherlands
- Weight (working/transport): 89 / 63 ton
- Engine type / power: Cummins QSL9 Tier3B / 283kW (380Hp)
- Leader length/Telescopic movement/Max.pile (max.hammer): 24,6/4,0/20m
- Leader / Pile capacity: 23ton / 8ton with 9ton hammer
- Hammer winch: 18ton / D26mm steel rope
- Pile winch: 10ton / D20mm steel rope
- Horizontal boom movement: 1,5m
- Counter weight: 10ton
- Track shoes: 900mm
- Transport dimensions: 20,5 x 3,4 x 3,8m (no hammer, short mast)
- Rig features & accessories: Rear Jacks, Extra 5ton pile winch
- HYDRAULIC HAMMER: SHK5/7/9
- Year of manufacture/Overhauled: 2010/2023
- Working hours: n/a
- Weight total / block: 14,8ton / 9,0ton
- Drop height: 1,2m
- Max. Energy: 119kNm
- Blow rate: 50 - 140 / min.
- Dimensions: 7,7 x 1,0 x 1,0m
- Hammer features & accessories: Drive cap housing D880mm

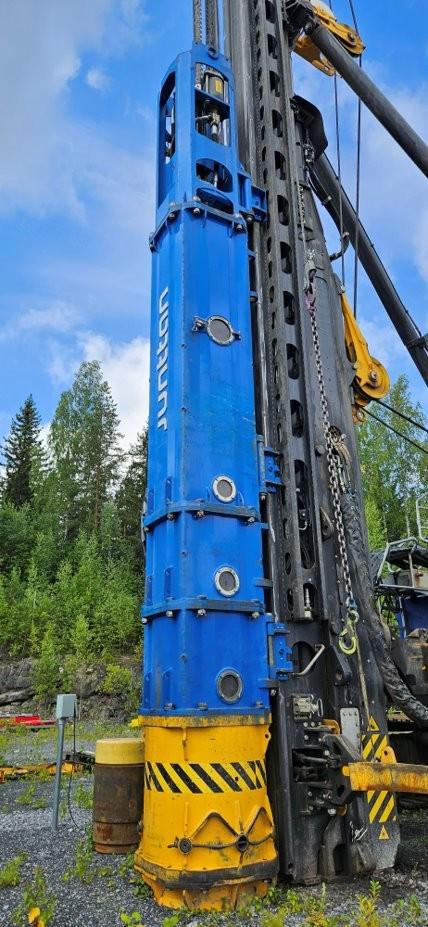

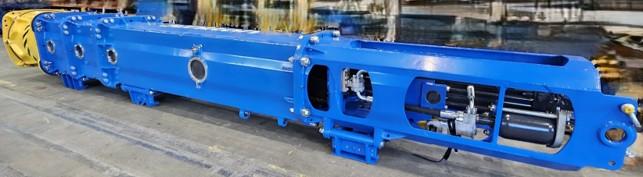

Junttan SHK5/7/9
Second-hand Junttan Shark-110-5/7/9ton hydraulic hammer
Overhauled used hydraulic hammer suitable for steel and concrete piles with the possibility of upgrading up to 9 tons.
- HYDRAULIC HAMMER: SHK5/7/9 #21202
- Year of Manufacture / Overhaul: 2011/2021
- Working hours: N/A
- Availability: Available
- Location: Kuopio, Finland
- Weight (total / block): 15.3 / 9,0ton
- Drop height: 1,2m
- Max. Energy: 119 kNm
- Blow rate: 50 - 120 / min.
- Dimensions: 10.8 x 1,0 x 1,0m
- Operating Pressure: 271 bar
- Oil Flow: 431 lpm
- Theoretical output: 125kW / 170 hp
- Max pile size (round) with standard housing: D 850 mm
- Other accessories attached: Long (2m) pile guide tube for 700mm piles
- Possible other accessories available: Control box, Energy Measuring Device, Other leader guides, Different size of pile drive caps, Hammer extensions up to 9ton, and more….
Junttan SHK4/5
Second-hand Junttan Shark-100-4/5ton hydraulic hammer
Overhauled used hydraulic hammer suitable for steel and concrete piles with the possibility to upgrade up to 6ton
- HYDRAULIC HAMMER: SHK4/5 #21229
- Year of Manufacture / Overhaul: 2012/2021
- Working hours: N/A
- Availability: Available
- Location: Gothenburg, Sweden
- Weight (total / block): 8,1/4,0 / 9,3/5,0 ton
- Drop height: 1,2m
- Max. Energy: 49 / 61 kNm
- Blow rate: 50 - 120 / min.
- Dimensions: 5,8 / 6,2 x 0,9 x 1,0m
- Operating Pressure: 194 / 243 bar
- Oil Flow: 456 lpm
- Theoretical output: 123 kW / 154 kW
- Max pile size (round) with standard housing: D 770 mm
- Other accessories attached: Leader Guides 80/500mm
- Possible other accessories available: Control box, Energy Measuring Device, Other leader guides, Different size of pile drive caps, Hammer extensions up to 6ton, and more….
Junttan SHK5/7
Second-hand Junttan Shark 5/7ton hydraulic hammer
Overhauled used hydraulic hammer suitable for steel and concrete piles with the possibility of upgrading up to 9 tons.
- HYDRAULIC HAMMER: SHK5/7 #21456
- Year of Manufacture/Overhaul: 2016/-
- Working hours: N/A
- Availability: Available/Needs service
- Location: Nieuwegein, Netherlands
- Weight (total/block): 9,6,1/5,0 / 11,9/7,0 ton
- Drop height: 1,2m
- Max. Energy: 61/89 kNm
- Blow rate: 50-120 / min
- Dimensions: 6,5 / 7,2 x 0,9 x 1,0m
- Operating pressure: 164/230 bar
- Oil flow: 456 lpm
- Theoretical output: 125kW/175kW
- Max pile size (round) with standard housing: D 760mm
- Other accessories attached: Leader Guides 80/500mm
- Possible other accessories available: Control box, Measuring Device, Other leader guides, Different size of pile drive caps, and more...

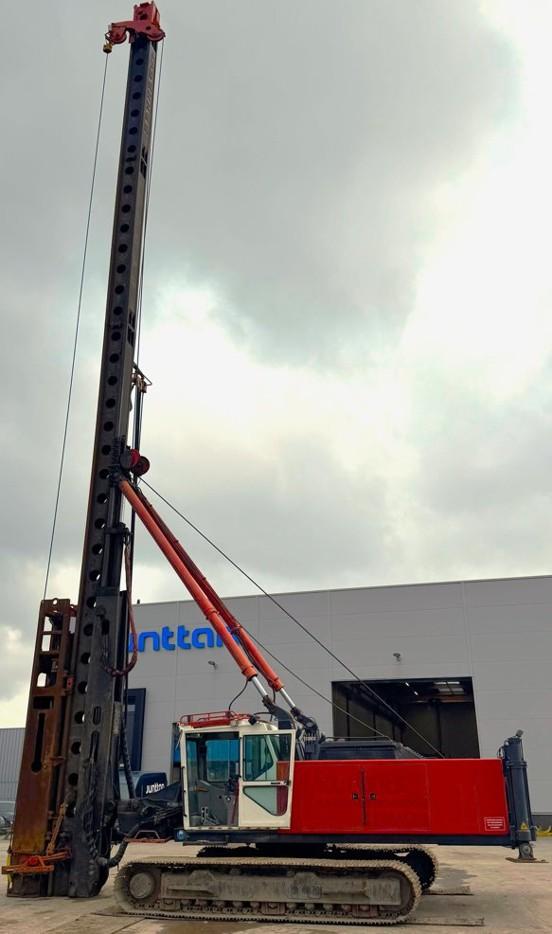

Junttan PM20LC with HHK5AL
Second-hand Junttan pile driving rig PM20LC with Junttan accelerated hammer HHK5AL
Well-serviced mid-sized pile driving rig with recommended 4-6 tons hammer size. Suitable for large timber, steel and concrete piles. Self-erecting leader and easy transport mobility.
- PILE DRIVING RIG: PM20LC #1312
- Year of manufacture: 2004
- Working hours: na
- Availability: Available
- Location: Newark/UK
- Weight (working/transport): 59 / 42 ton (without hammer & counter weight)
- Engine type / power: Cummins QSB5,9 Tier2 / 179kW (240Hp)
- Leader length/Telescopic movement/Max.pile (max.hammer): 17,9/4,0/15,0m
- Leader / Pile capacity: 15,0ton / 6,5ton with 5t hammer
- Hammer winch: 12ton / D22mm steel rope
- Pile winch: 8ton / D20mm steel rope
- Horizontal boom movement: 1,5m
- Counter weight: 6,5ton
- Track shoes: 900mm
- Transport dimensions: 17,9 x 3,4 x 3,7m (hammer on the mast)
- Rig features & accessories: Engine overhauled
- HYDRAULIC HAMMER: HHK5AL
- Year of manufacture: 2009
- Working hours: na
- Weight total / block: 8,6 ton / 5ton
- Drop height: 1,2m
- Max. Energy: 59kNm
- Blow rate: 30 - 100 / min.
- Dimensions: 5,9 x 1,0 x 1,0m
- Hammer features & accessories: Drive cap housing D740mm
Junttan PM20LC with HHK5A
Second-hand Junttan pile driving rig PM20LC with Junttan accelerated hammer HHK5A
Well-serviced mid-sized pile driving rig with recommended 4-6 tons hammer size. Suitable for large timber, steel and concrete piles. Self-erecting leader and easy transport mobility.
- PILE DRIVING RIG: PM20LC #1466
- Year of manufacture/overhauled: 2007/2023
- Working hours: approx. 13 500
- Availability: Available
- Location: Newark/UK
- Weight (working/transport): 59 / 44 ton (without hammer & counter weight)
- Engine type / power: Cummins QSB6,7 Tier3 / 176kW (240Hp)
- Leader length/Telescopic movement/Max.pile (max.hammer): 18,3/4,0/15,0m
- Leader / Pile capacity: 16,0ton / 7,0ton with 5t hammer
- Hammer winch: 10ton / D25mm steel rope
- Pile winch: 8ton / D20mm steel rope
- Horizontal boom movement: 1,5m
- Counter weight: 6,2ton
- Track shoes: 900mm
- Transport dimensions: 18,3 x 3,4 x 3,7m (hammer on the mast)
- Rig features & accessories: -
- HYDRAULIC HAMMER: HHK5A
- Year of manufacture/overhauled: 2007/2023
- Working hours: approx. 13 500
- Weight total / block: 9,1ton / 5ton
- Drop height: 1,2m
- Max. Energy: 59kNm
- Blow rate: 30 - 100 / min.
- Dimensions: 5,9 x 1,0 x 1,0m
- Hammer features & accessories: Drive cap housing D740mm
Junttan PM25H with HHK7/9A
Second-hand Junttan pile driving rig PM25H with Junttan accelerated hammer HHK7/9A
Well-serviced large-sized used pile driving rig with recommended hammer size of 7-9ton. Suitable for steel and concrete piles. Self-erecting leader and easy transport mobility.
- PILE DRIVING RIG: PM25H #1528
- Year of manufacture: 2009
- Working hours: 17,000
- Availability: Available
- Location: Nieuwegein, Netherlands
- Weight (working/transport): 82 / 82 ton (with hammer)
- Engine type / power: Cummins QSM11 Tier3 / 280kW (375Hp)
- Leader length/Telescopic movement/Max.pile (max.hammer): 26,2/4,0/20m
- Leader / Pile capacity: 20ton / 5,5ton with 9ton hammer
- Hammer winch: 15ton / D26mm steel rope
- Pile winch: 10ton / D22mm steel rope
- Horizontal boom movement: 1,5m
- Counter weight: 10ton
- Track shoes: 900mm
- Transport dimensions: 21,2 x 3,5 x 3,9m (with hammer, reduced mast)
- Rig features & accessories: Transport weight can be reduced! Rear Jacks. 24m pile with 7ton hammer. Side cat head.
- HYDRAULIC HAMMER: HHK7/9A
- Year of manufacture: 2009
- Working hours: 17,000
- Weight total / block: 14,5 / 9ton
- Drop height: 1,2m
- Max. Energy: 82/ 105kNm
- Blow rate: 30 - 100 / min.
- Dimensions: 7,0 x 1,0 x 1,0m
- Hammer features & accessories: Drive cap housing van Hattem

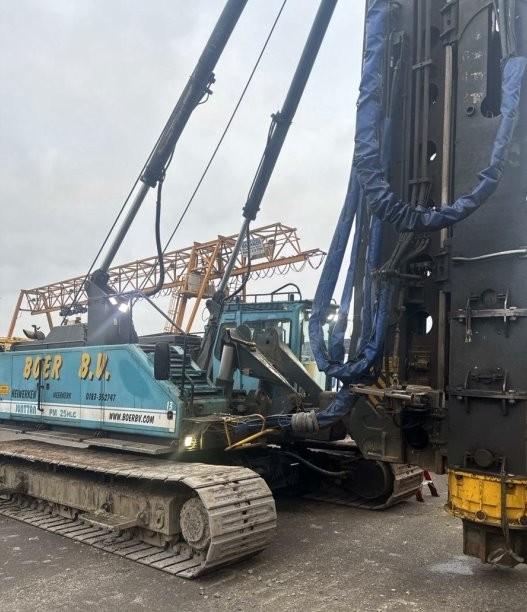

Junttan PM25HLC with HHK5/7S
Second-hand Junttan pile driving rig PM25HLC with Junttan accelerated hammer HHK5/7S
Well-serviced large-sized used pile driving rig with recommended hammer size of 5-7ton. Suitable for steel and concrete piles. Self-erecting leader and easy transport mobility.
- PILE DRIVING RIG: PM25HLC #1610
- Year of manufacture: 2012
- Working hours: approx. 7 000
- Availability: In transport, need service, delivery time about 2 months
- Location: Nieuwegein, Netherlands
- Weight (working/transport): 73 / 53 ton (without hammer & counter weight)
- Engine type / power:Cummins QSC8,3 Tier3 / 227kW (305Hp)
- Leader length/Telescopic movement/Max.pile (max.hammer): 21,2/4,0/18m
- Leader / Pile capacity: 20ton / 8ton with 7ton hammer
- Hammer winch: 15ton / D26mm steel rope
- Pile winch: 10ton / D20mm steel rope
- Horizontal boom movement: 1,5m
- Counter weight: 8ton
- Track shoes: 900mm
- Transport dimensions: 14,7 x 3,5 x 3,6m
- Rig features & accessories: Rear Jacks. Side auger option.
- HYDRAULIC HAMMER: HHK5/7S
- Year of manufacture: 2012
- Working hours: approx. 7 000
- Weight total / block: 11,8 / 7ton
- Drop height: 1,5m
- Max. Energy: 74 / 103 kNm
- Blow rate: 30 - 100 / min.
- Dimensions: 7,4 x 1,2 x 1,4m
- Hammer features & accessories: Max. D780mm pile standard, upgrades possible.
Junttan PM26LC with HHK5/7/9A
Second-hand Junttan pile driving rig PM26LC with Junttan accelerated hammer HHK5/7/9A
Well serviced large-sized pile driving rig with recommended hammer size of 7-12ton. Suitable for steel and concrete piles. Self-erecting leader and easy transport mobility.
- PILE DRIVING RIG: PM26LC #1419
- Year of manufacture: 2007
- Working hours: approx. 16 000
- Availability: Available / Repaired & Serviced
- Location: Nieuwegein, Netherlands
- Weight (working/transport): 96,1 / 73,1 ton (without hammer & counter weights)
- Engine type / power: Cummins QSX15 Tier3 / 415kW (557Hp)
- Leader length/Telescopic movement/Max.pile (max.hammer): 35/1,8/29m
- Leader / Pile capacity: 30ton / 12,0ton
- Hammer winch: 18ton / D28mm steel rope
- Pile winch: 12ton / D22mm steel rope
- Horizontal boom movement: 0,9m
- Counter weight: 10ton
- Track shoes: 900mm
- Transport dimensions: 22 x 3,6 x 3,4m (no hammer on the mast)
- Rig features & accessories: Mast hinge. Rear Jacks.
- HYDRAULIC HAMMER: HHK5/7/9A
- Year of manufacture: 2007
- Working hours: approx. 16 000
- Weight total / block: 14,6ton / 9ton
- Drop height: 1,2m
- Max. Energy: 105kNm
- Blow rate: 30 - 100 / min.
- Dimensions: 7,7 x 1,0 x 1,0m
- Hammer features & accessories: Drive cap housing D880mm
HHK4/6AL
Second-hand Junttan 4/6ton accelerated hydraulic hammer
Overhauled hydraulic hammer suitable for wood, steel and concrete piles.
- HYDRAULIC HAMMER: HHK4/AL #21056
- Year of Manufacture / Overhaul: 2008
- Working hours: n/a
- Availability: Available
- Location: Nieuwegein, Holland
- Weight (total/block): 9,8/ 6,0 ton
- Drop height: 1,2m
- Max. Energy: 70 kNm
- Blow rate: 40 - 100 / min.
- Dimensions: 6,3 x 0,9 x 1,0m
- Operating Pressure: 157 bar
- Oil Flow: 398 lpm
- Theoretical output: 107 kW
- Max pile size (round) with standard housing: D 780 mm
- Possible other accessories available: per inquiry
HHK12A
Second-hand Junttan 12ton accelerated hydraulic hammer
Overhauled hydraulic hammer suitable for steel and large concrete piles.
- HYDRAULIC HAMMER: HHK12A #2499
- Year of Manufacture: 1998
- Working hours: n/a
- Availability: Available
- Location: Quebec, Canada
- Weight (total/block): 20,5 / 12 ton
- Drop height: 1,2m
- Max. Energy: 144 kNm
- Blow rate: 40 - 100 / min.
- Dimensions: 7,0 x 1,3 x 1,3m
- Operating Pressure: 211 bar
- Oil Flow: 609 lpm
- Theoretical output: 208 kW / 283 hp
- Max pile size (round) with standard housing: D 960 mm
- Other accessories attached: Cylinder rod cover, hammer lifting accessories, flying leader
HHK14S
Second-hand Junttan 14ton accelerated hydraulic hammer
Overhauled used hydraulic hammer suitable for steel and concrete piles with possibility to upgrade up to 16ton. 1,5m troke.
- HYDRAULIC HAMMER: HHK14S #21600
- Year of Manufacture / Overhaul: 2020
- Working hours: n/a
- Availability: Available
- Location: Nieuwegein, Holland
- Weight (total/block): 21,8* / 14 ton
- Drop height: 1,5m
- Max. Energy: 206 kNm
- Blow rate: 30 - 100 / min.
- Dimensions: 8,5* x 1,5 x 1,5m
- Operating Pressure: 211 bar
- Oil Flow: 565 lpm
- Recommended Junttan power pack: 15Xcu -
- Max pile size (round) with standard housing: D 1240 mm
- Possible other accessories available: Pile guide tube 2m long for D1240mm piles, Hanging accessories, Power pack and hoses, and more….
- *without accessories
Junttan HHK5/7AS
Second-hand Junttan 5/7ton accelerated hydraulic hammer
Overhauled used hydraulic hammer suitable for wood, steel and concrete piles with a possibility to upgrade up to 9ton.
- HYDRAULIC HAMMER: HHK5/7AS #21181
- Year of Manufacture / Overhaul: 2010 / 2016
- Working hours: N/A
- Availability: Available
- Location: Kuopio, Finland
- Weight: (total/block): 8,7/11,2 / 5/7ton
- Drop height: 1,2m
- Max. Energy: 61 / 89 kNm
- Blow rate: 50 - 120 / min.
- Dimensions: 9,2 / 10,0 x 0,9 x 1,0m
- Operating Pressure: 157 / 183 bar
- Oil Flow: 398 lpm
- Theoretical output: 104 kW / 121 kW
- Max pile size (round) with standard housing: D 850 mm
- Other accessories attached: Cylinder rod cover, hammer lifting accessories
- Possible other accessories available: Control box, Energy Measuring Device, Other leader guides, Different size of pile drive caps, and more….
Junttan HHK7/8AS
Second-hand Junttan 7/8ton accelerated hydraulic hammer
Overhauled used hydraulic hammer suitable for wood, steel and concrete piles with a possibility to upgrade up to 9ton.
- HYDRAULIC HAMMER: HHK7/8AS #21002
- Year of Manufacture / Overhaul: 2003 / -
- Working hours: N/A
- Availability: Available
- Location: Gothenburg, Sweden
- Weight (total / block): 11,0/12,3 / 7 /8 ton
- Drop height: 1,2m
- Max. Energy: 82 / 106 kNm
- Blow rate: 50 - 120 / min.
- Dimensions: 6,6 / 7,0 x 0,9 x 1,0m
- Operating Pressure: 183 / 209 bar
- Oil Flow: 398 lpm
- Theoretical output: 121 kW / 138 kW
- Max pile size (round) with standard housing: D 850 mm
- Other accessories attached: Cylinder rod cover, hammer lifting accessories
- Possible other accessories available: Control box, Energy Measuring Device, Other leader guides, Different size of pile drive caps, and more….
Junttan 15BCU
Second-hand Junttan hydraulic power pack 15BCU
Well-serviced mid-sized used hydraulic power pack to use recommended Junttan hammer size of <12ton.
- HYDRAULIC POWER PACK: 15BCU #679
- Year of manufacture: 1999
- Working hours: N/A
- Availability: Available
- Location: Gothenburg, Sweden
- Weight: 5900kg
- Engine type / power: Cummins M11 Tier2 / 246kW (330Hp)
- Hydraulic oil capacity/ Fuel capacity: 1000 / 400L
- Pressure / oil flow max.: 220 bar / 650 lpm
- Transport dimensions: 3,8 x 1,3 x 2,1 m
- Other features & accessories: PP-control box
