Exceptional power for driving or extracting

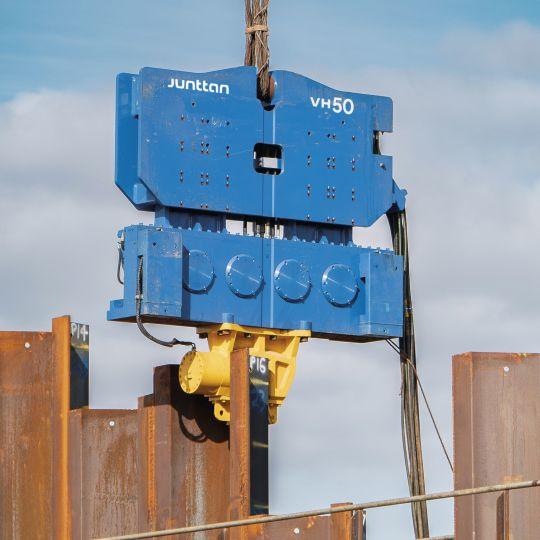

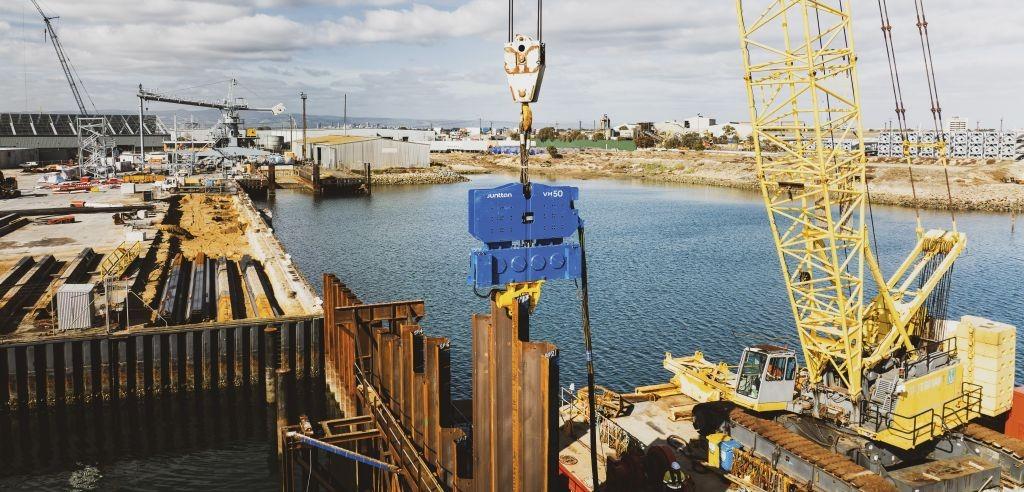

The Junttan normal frequency Vibratory Hammers (VH models), is your go-to solution for projects that demand exceptional force for driving or extracting. Unlocking the true power of innovation, Junttan presents a range of free-hanging hydraulic vibratory hammers powered by the Junttan vibratory Power Pack models (PP series).
Key features:
- Soil conditions from moderate to difficult driving conditions
- For driving and extracting tubular, sheet and H-piles
- Robust, proven design
- Easy handling with different clamping solutions
For driving and extracting tubular, sheet and H-piles
Soil conditions from moderate to difficult driving conditions
Robust, proven design

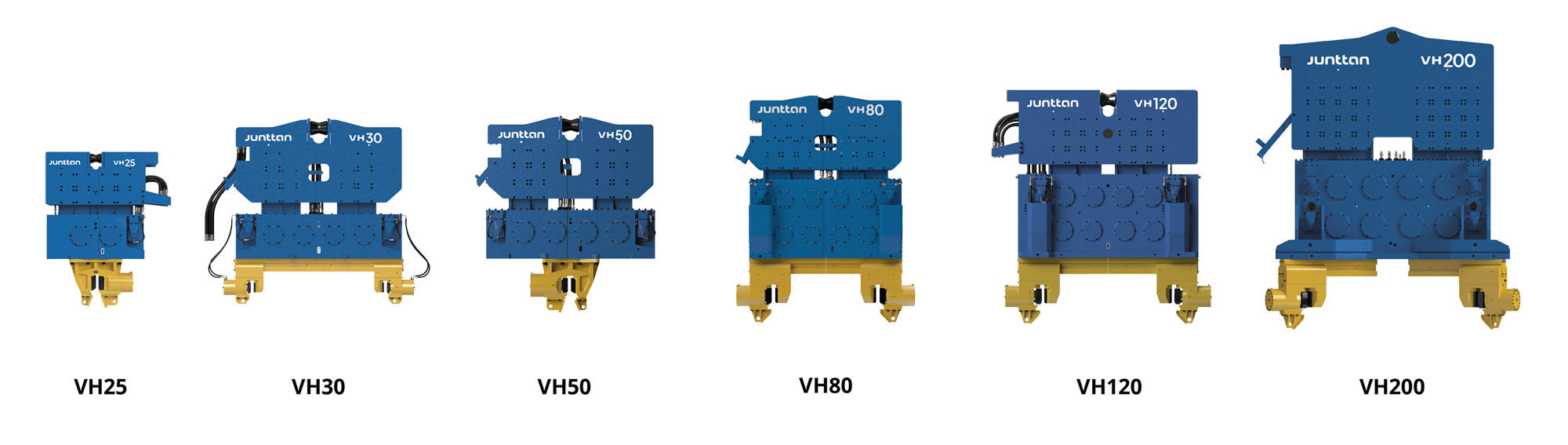

| Technical specifications | VH25 | VH30 | VH50 | VH80 | VH120 | VH200 |
|---|---|---|---|---|---|---|
| ECCENTRIC MOMENT (KGM / IN.LBS) | 25 (2170) | 32.6 (2830) | 50.2 (4357) | 82.6 (7170) | 120 (10416) | 203.2 (17637) |
| CENTRIFUGAL FORCE (KN / TONS) | 795 (89) | 1036 (116) | 1409 (159) | 2318 (261) | 2846 (320) | 4380 (493) |
| FREQUENCY (RPM) | 1700 | 1700 | 1600 | 1600 | 1480 | 1400 |
| OIL FLOW (LPM / GPM) | 366 (97) | 421 (111) | 605 (160) | 959 (254) | 1122 (297) | 1792 (474) |
| POWER (KW / HP) | 195 (262) | 243 (326) | 352 (472) | 511 (685) | 598 (802) | 1045 (1402) |
| AMPLITUDE (MM / IN) | 22 (0.9) | 24 (0.9) | 24 (0.9) | 23 (0.9) | 26 (1) | 19 (0.7) |
| PULLING FORCE (KN / TONS) MAX. | 470 (53) | 590 (66) | 706 (80) | 1059 (119) | 1059 (119) | 1880 (212) |
| WEIGHT AND DIMENSIONS | ||||||
| DYN. WEIGHT W/O CLAMP (KG / LBS) | 2270 (5004) | 2750 (6063) | 4130 (9105) | 7109 (15673) | 9145 (20162) | 21700 (47841) |
| TOTAL WEIGHT W/O CLAMP (KG / LBS) | 3100 (6834) | 4485 (9888) | 6150 (13559) | 10257 (22613) | 12172 (26835) | 26100 (57541) |
| LENGTH / L1 (MM / IN) | 1998 (79) | 2599 (102) | 2650 (105) | 3315 (131) | 3315 (131) | 3660 (144) |
| LENGTH / L2 (MM / IN) | 1796 (71) | 2420 (95) | 2460 (97) | 3070 (121) | 3070 (121) | 3350 (132) |
| LENGTH / L3 (MM / IN) | 1848 (73) | 2812 (111) | 2848 (112) | 3410 (134) | 3390 (133) | – |
| HEIGHT / H1 (MM / IN) | 1610 (63) | 2034 (80) | 2117 (84) | 2200 (87) | 2682 (106) | 3620 (143) |
| HEIGHT / H2 (MM / IN) | 2282 (90) | 2704 (106) | 2861 (113) | 3615 (143) | 3786 (149) | – |
| WIDTH / W1 (MM / IN) | 371 (15) | 364 (14) | 384 (15) | 451 (18) | 455 (18) | 493 (20) |
| WIDTH / W2 (MM / IN) | 550 (22) | 575 (23) | 590 (23) | 761 (30) | 728 (29) | 2070 (82) |
| WIDTH / W3 (MM / IN) | 250 (10) | 250 (10) | 292 (12) | 370 (15) | 370 (15) | – |
| THROAT WIDTH (MM / IN) | 360 (14.2) | 350 (13.8) | 360 (14.2) | 461 (18.2) | 430 (16.9) | 800 (31.5) |
| SHEET PILE CLAMPS | SC120 | SC120 | SC165 | SC350 | SC350 | – |
| CLAMPING FORCE (KN / TONS) | 1216 (137) | 1216 (137) | 1700 (191) | 3560 (400) | 3560 (400) | – |
| WEIGHT (KG / LBS) | 851 (1876) | 851 (1876) | 866 (1909) | 2553 (5629) | 2553 (5629) | – |
| TUBE/CASING CLAMPS | TC60 X 2 | TC60 X 2 | TC90 X 2 | TC165 X 2 | TC185 X 2 | TC185 X 4 |
| DIAMETER (MIN.-MAX.) / D (MM / IN) | 340–1030 (14–41) | 340–1900 (14–75 ) | 460–1900 (18–75 ) | 520–2100 (21– 83) | 520–2000 (21–83 ) | 1000–3000 (40–118) |
| CLAMPING FORCE (KN / TONS) | 643 x 2 (145) | 643 x 2 (145) | 890 x 2 (200) | 1700 x 2 (382) | 1858 x 2 (418) | 1858 x 4 (836) |
| WEIGHT (KG / LBS) | 307 x 2 (1354) | 307 x 2 (1354) | 538 x 2 (2372) | 1164 x 2 (5133) | 1164 x 2 (5133) | 1164 x 4 (10264) |
| RECOMMENDED POWER PACK | PP400 | PP700 | PP700 | PP900 | PP1400 | PP2000 |
| POWER (KW / HP) | 235 (320) | 405 (551) | 405 (551) | 585 (796) | 405 x 2 (551 x 2) | 585 x 2 (796 x 2) |
